Block Wall Cement Paint Spray Machine Smooth Stucco Finish 220V 50HZ
EZ-ROBOT is the newly developed rendering machine in the end of 2014 by EZ RENDA, its research contains the latest technology.
EZ-ROBOT ---BENEFITS & FWATURES
· Remote control the unique technology of EZ RENDA .
· Unique positioning system: no need dot in the bottom of wall, quick positioning.
· Save labor cost and high accuracy.
· 30% more mortar tank capacity contrast to alike products.

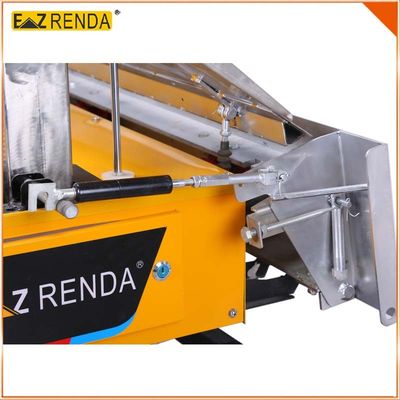

· Electrically control the flip of plastering trowel. More accurate than the XP-2014.
· Render starts from 12.5cm away from ground while others start from 28cm only.
· Improved hydraulic system to assure steady and constant output pressure.
· Latest inverter technology. Single-phase input to drive three-phase motor, more stable.

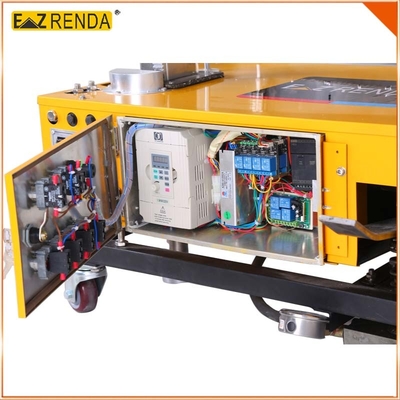

· Special design on electric cabinet: one-piece pattern. When three are problems in appliance or circuits, can be taken out integrally to fix .
APPLICATION:
- Application: brick wall, block wall, cement wall, internal wall, house, building, skyscraper, villa, construction
- Applied materials: cement, gypsum, lime, ready mix, perlite, clay mortar
SPECIFICATION:
|
Model NO. |
EZ-ROBOT-1000 |
EZ-ROBOT-1200 |
|
Dimension of L/W/H |
1150mm/700mm/500mm |
1350mm/700mm/500mm |
|
Net weight |
100Kg |
110Kg |
|
Electrically Phase |
220V |
220V |
|
Frequency |
50HZ |
50HZ |
|
Power |
0.75 KW |
0.75 KW |
|
Length of Plastering trowel |
1000mm |
1200mm |
|
Rendering height |
Up to 4.2m |
Up to 4.2m |
|
Rendering thickness |
4mm-30mm |
4mm-30mm |
|
Rendering speed |
Up to 700m²/day |
Up to 750m²/day |
ADVANTAGE:
|
|
EZ RENDA Rendering Machine |
Manual Rendering |
|
Speed/8 hours |
500-750 sqm |
Less than 50 sqm |
|
Finishing |
Smooth & flat in horizontal & vertical level. Professional mirror finishing. |
Always reveal crack, bubbles, etc. |
|
Coating |
Once coating while render up |
Several times coating by numberless trowels. |
|
Procedures |
Hydraulic system & traditional spot guide within 10 seconds. |
Adjust planeness by square bar in circular arc movement again & again. |
|
Extra supporting |
Electricity. |
Scaffolding, mop, trowel, square bar, lots of extra tools. |
|
Labor Intensity |
Two only. Effortless. |
A lot more. Hard work. |
|
Time Consumption |
Saving 70% - 80% time. |
Long time work. |
FAQ:
1- Whether the machine could be used for the external wall and ceiling?
No, it couldn’t at present. We are still working on it. It will coming soon!
2- Whether the hollow and cracking could happen?
Hollows can be avoided because there are three vibrators behind the mortar tank. It creats high pressure to the wall when machine works. And watering before rendering the wall can avoid cracking.
3- How about the finishing effect? Whether it is smooth?
The finishing effect is definitely smooth, no hollow, no cracking. The difference is less than 2mm.
4- How many people need to operate the machine effectively? What is their division of labor?
Normally 3 people are enough to operate the machine, two people operate the machine and one person is in charge of small area repairing.
5- How do we use the machine on walls with openings such as windows and doors? Can it be done with the machine or do we have to do it manually?
All models of machines can definitely render the area which is below and above window.
For the machine VISTA and XP: Supply little mortar at first, when the machine reach the open area, the mortar is nearly used up. After the machine passed the open area, press the “STOP” button and supply the mortar to render the top area then.
6- How is the machine cleaned after use?
After finish using the rendering machine, the cleaning job needed to be done after the power is cut off. Use water to wash the caster, plastering tank, directional pipes, extensions. The machine body and the buttons could only be cleaned by the cloth.
7- What is the life for the m/c?
3-5 years at normal use
8- What maintenance is required at site?
- Clean the machine each time after finishing using.
- Oil mechanic parts daily and grease every week;
- Change gear box oil(18#gear oil with 350ml) every 3 months;
- Check each part of the machine and replace wearing parts regularly;
- Check wire rope daily and replace no more than one month. (VISTA);
- Add the hydraulic oil when needed.
